乾式吹吸複合泵 - DVT系列 |
|
| |
| 乾式吹吸複合泵 - DVT 410 |
 |
| |
| Type |
Item |
Pressure
(bar) |
50Hz Vacuum (bar) |
60Hz Vacuum (bar) |
| 0 |
-0.25 |
-0.5 |
0 |
-0.25 |
-0.5 |
| DVT 410 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.25 |
9.46
9.46
0.18
48 |
7.05
7.05
0.21
54 |
4.06
4.06
0.23
59 |
11.71
11.71
0.23
52 |
8.24
8.24
0.27
59 |
4.92
4.92
0.29
63 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.5 |
9.36
9.36
0.24
58 |
6.45
6.45
0.28
63 |
3.59
3.59
0.31
68 |
11.05
11.05
0.31
60 |
6.97
6.97
0.32
67 |
4.47
4.47
0.36
73 |
|
| |

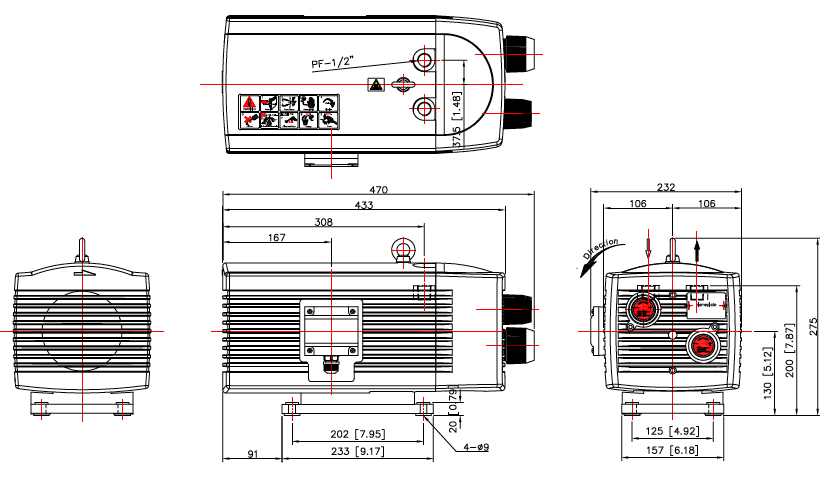

| Unit : mm (inch) |
| Type |
A |
B |
D1 |
D2 |
E |
F |
F1 |
G |
H |
H1 |
H2 |
I |
J |
K |
L |
| DVT 410 |
202 |
190 |
PF 1/2” |
PF 1/2” |
75 |
233 |
157 |
232 |
130 |
200 |
275 |
91 |
167 |
433 |
470 |
 |
|
|
| |
 |
|
