  乾式真空泵

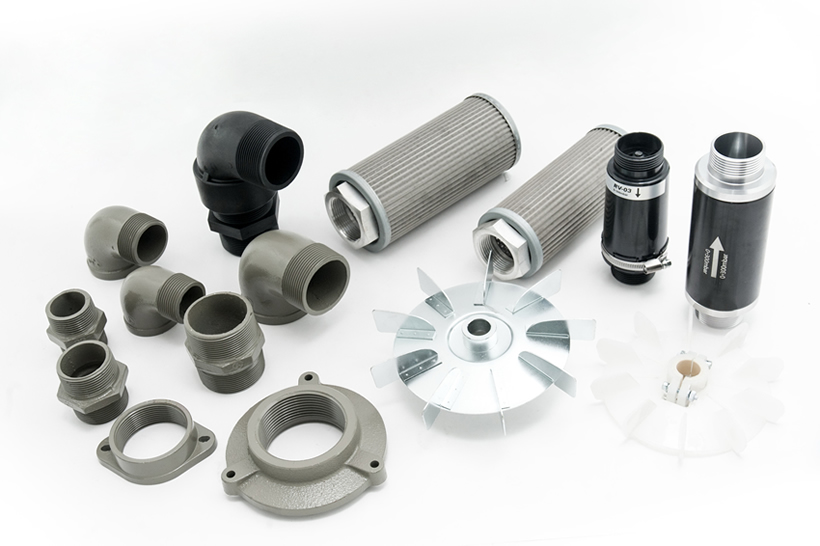

零配件

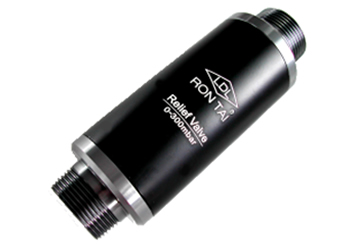

釋壓閥 - 鋁合金

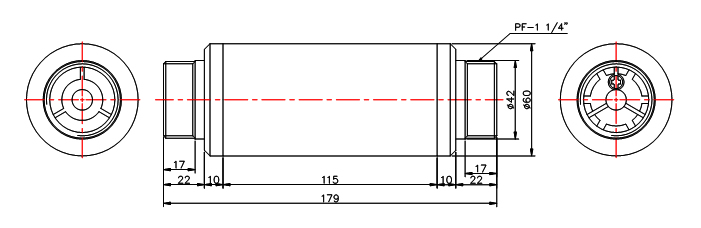

Type Number Thread Range
RV-A03 PF-1 1/4 “ 0 ~ 300mbar
RV-A36 PF-1 1/4 “ 300 ~ 600mbar




- Relief Valve

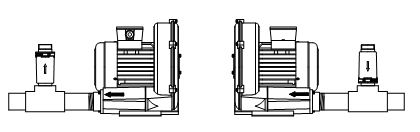

Over high pressure using shall be avoid in closed piping loop for side channel compressor/乾式真空泵, otherwise deformation and break may occur to side channel compressor/乾式真空泵 due to temperature raise or over load, adjustable pressure & vacuum relief valve shall be installed to protect motor.




Application :
- Used in side channel compressor/乾式真空泵 and suitable both pressure/vacuum use.
- Static pressure setting easily adjustable.
- Connect thread suitable for PT, PF and NPT-1 1/4".
- Durable operation temperature : -20 ~+140oC
- Keep away from grease or volatile oil/gas.
