零配件 |
|
| |
 |
| |
| Inlet /Outlet Flange |
| |
| - for Hose Pipe |
| |
| Type No. |
D
mm |
d
mm |
H
mm |
L
mm |
P
mm |
Weight
kgs |
Material |

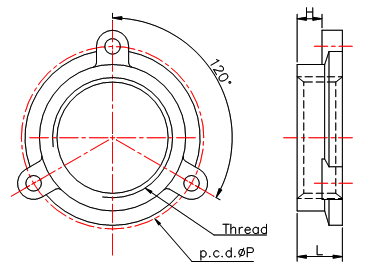

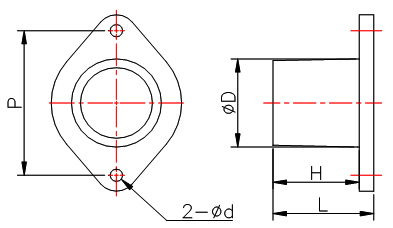

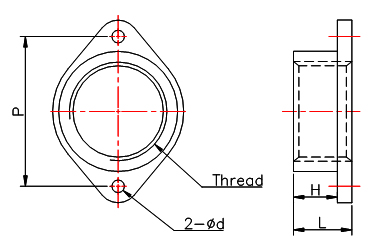

Diagram |
| 1-OD-32 |
32 |
5.5 |
29 |
35 |
50 |
0.05 |
Aluminum |
1 |
| 2-OD-32 |
32 |
6 |
31 |
38 |
64 |
0.08 |
Aluminum |
1 |
| 2-OD-37 |
37 |
6 |
31 |
38 |
64 |
0.07 |
Aluminum |
1 |
| 3-OD-44 |
44 |
6 |
37 |
44 |
67 |
0.08 |
Aluminum |
1 |
| 3-OD-51 |
51 |
6 |
31 |
38 |
67 |
0.09 |
Aluminum |
1 |
| 4-OD-50 |
50 |
7 |
44 |
52 |
83 |
0.14 |
Aluminum |
1 |
| 4-OD-57 |
57 |
7 |
58 |
65 |
83 |
0.18 |
Aluminum |
1 |
| 3-OD-44-2 |
44 |
7 |
28 |
57 |
67 |
0.11 |
Aluminum |
2 |
| 3-OD-55-2 |
55 |
7 |
52 |
105 |
67 |
0.28 |
Aluminum |
2 |
|
| |
 |
|
| |
 |
|
| |
| -for Thread Pipe |
| |
| Type No. |
Thread
PF(or USA PF) |
d
mm |
H
mm |
L
mm |
P
mm |
Weight
kgs |
Material |
Diagram |
| 1-T10 |
1” |
5.5 |
18 |
23 |
50 |
0.05 |
Aluminum |
3 |
| 2-T12 |
1 1/4” |
6 |
22 |
29 |
64 |
0.07 |
Aluminum |
3 |
| 3-T15 |
1 1/2” |
6 |
24 |
31 |
67 |
0.08 |
Aluminum |
3 |
| 5-T20 |
2” |
7 |
18 |
25 |
83 |
0.10 |
Aluminum |
3 |
| 7-T25 |
2 1/2” |
7 |
16 |
31 |
130 |
0.80 |
Cast Iron |
4 |
| 9-T40 |
4” |
9 |
29 |
36 |
150 |
1.10 |
Cast Iron |
3 |
|
| |
 |
|
| |
 |
|
|
|
|
