乾式吹吸複合泵 - DVT系列 |
|
| |
| 乾式吹吸複合泵 - DVT 425K |
 |
| |
| Type |
Item |
Pressure
(bar) |
50Hz Vacuum (bar) |
60Hz Vacuum (bar) |
| 0 |
-0.4 |
-0.5 |
-0.6 |
0 |
-0.4 |
-0.5 |
-0.6 |
| DVT 425K |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.4 |
23.8
25.2
0.73
37 |
12.7
20
0.93
38 |
10.1
18.6
0.97
39 |
7.2
17.2
1.1
40 |
28.5
30.6
0.94
37 |
16.5
23.5
1.1
41 |
12.2
21.5
1.12
42 |
9.1
19.7
1.12
43 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.5 |
23.2
24.7
0.78
36 |
12.4
29.5
0.93
39 |
9.9
16.1
1
40 |
7.11
16.8
1.06
41 |
28.3
30.1
1.04
38 |
15.5
23.1
1.16
42 |
12.1
21.4
1.19
43 |
9.02
19.5
1.24
44 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.6 |
23
24.3
0.83
38 |
12.1
19
0.98
39 |
9.7
17.7
1.05
40 |
7
16.5
1.1
42 |
28.1
30.2
1.05
40 |
15.3
23
1.22
43 |
12.2
21.1
1.25
44 |
9
19.3
1.3
45 |
|
| |

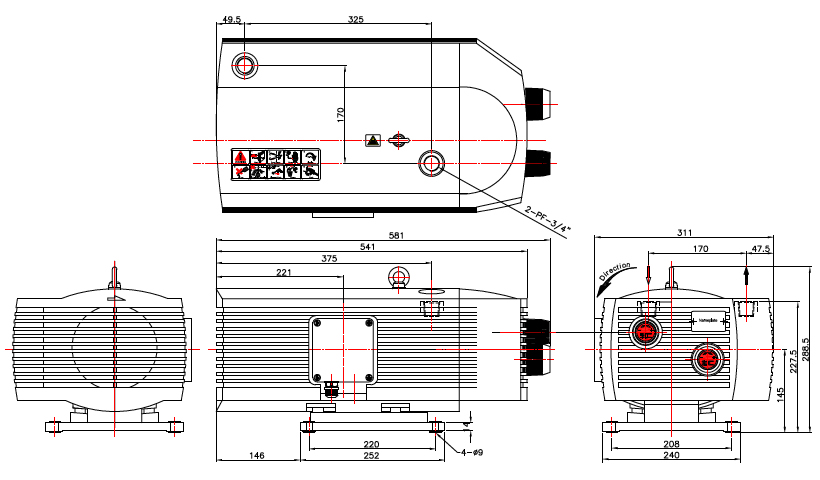

| Unit : mm (inch) |
| Type |
A |
B |
D1 |
D2 |
E |
F |
F1 |
G |
H |
H1 |
H2 |
I |
J |
K |
L |
| DVT 425K |
397 |
245 |
PF 3/4” |
PF 3/4” |
- |
252 |
240 |
311 |
145 |
228 |
289 |
146 |
221 |
541 |
581 |
 |
|
|
| |
 |
|
