乾式吹吸複合泵 - DVT系列 |
|
| |

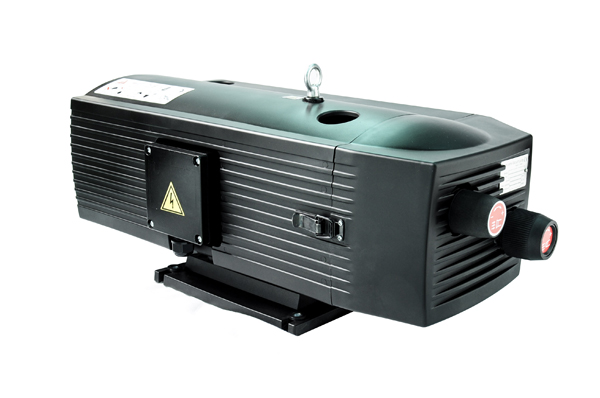

| 乾式吹吸複合泵 - DVT 440K |
 |
| |
| Type |
Item |
Pressure
(bar) |
50Hz Vacuum (bar) |
60Hz Vacuum (bar) |
| 0 |
-0.4 |
-0.5 |
-0.6 |
0 |
-0.4 |
-0.5 |
-0.6 |
| DVT 440K |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.4 |
34.6
34.2
1.09
37 |
17.7
26.1
1.33
41 |
13.8
23.5
1.37
42 |
10.1
20.6
1.43
43 |
42.3
42.2
1.45
40 |
21.3
30.7
1.75
43 |
17.1
27.3
1.78
43 |
13.2
24.4
1.87
44 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.5 |
34.4
33.8
1.13
39 |
17.4
25.2
1.41
41 |
13.3
22.9
1.47
42 |
9.9
19.9
1.53
43 |
42.2
41.7
1.53
41 |
21.4
30.6
1.81
45 |
17
27.1
1.85
44 |
12.5
23.7
1.96
43 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.6 |
34.1
33.3
1.21
39 |
17.1
25
1.48
41 |
13.2
22.6
1.53
42 |
9.6
19.1
1.62
42 |
40.9
40.9
1.56
43 |
21.2
30.2
1.9
44 |
16.5
26.4
1.96
45 |
12
22.8
2.03
45 |
|
| |

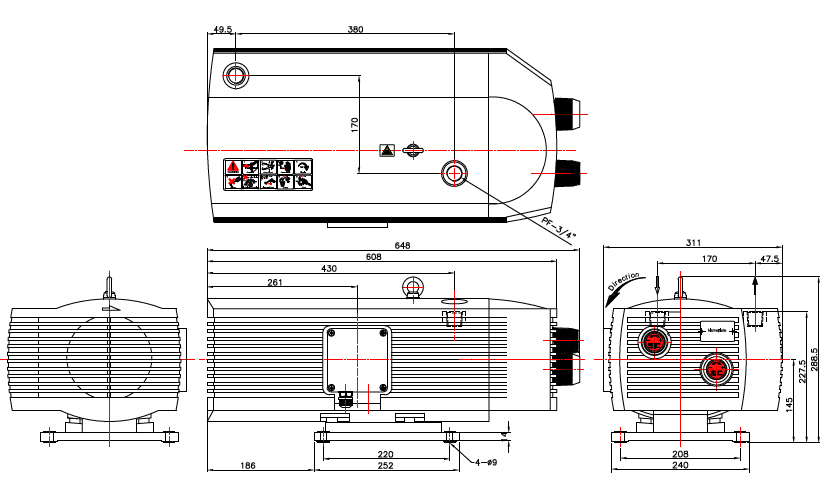

| Unit : mm (inch) |
| Type |
A |
B |
D1 |
D2 |
E |
F |
F1 |
G |
H |
H1 |
H2 |
I |
J |
K |
L |
| DVT 440K |
397 |
245 |
PF 3/4” |
PF 3/4” |
- |
252 |
240 |
311 |
145 |
228 |
289 |
186 |
261 |
608 |
648 |
 |
|
|
| |
 |
|
