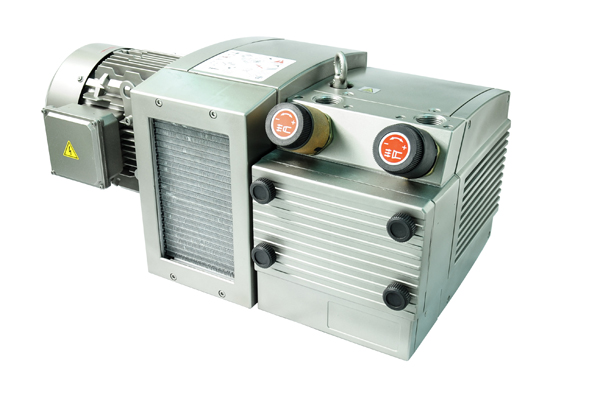

乾式吹吸複合泵 - DVT系列 |
|
| |
| 乾式吹吸複合泵 - DVT 3080 |
 |
| |
| Type |
Item |
Pressure
(bar) |
50Hz Vacuum (bar) |
60Hz Vacuum (bar) |
| 0 |
-0.4 |
-0.5 |
-0.6 |
0 |
-0.4 |
-0.5 |
-0.6 |
| DVT 3080 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.4 |
64
65.9
2.11
41 |
32.4
51.8
2.56
46 |
25
47.3
2.63
45.8 |
17.9
43.1
2.7
48 |
77.5
82.5
2.91
45 |
40.5
62.9
3.3
49 |
31.7
56.7
3.33
50 |
23.6
50.8
3.39
50 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.5 |
63.8
65
2.15
41 |
32.1
51.2
2.65
48 |
25
47
2.72
48 |
18.1
43
2.82
49 |
76.2
81.2
2.93
45 |
40.5
62.8
3.36
50 |
31.8
56.6
3.42
52 |
23.3
50.3
3.47
51 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.6 |
62.8
64.5
2.25
43 |
32
51
2.73
46 |
24.6
46.6
2.8
49 |
17.5
42.3
2.9
48 |
75.9
80.6
3
46 |
40.5
62.5
3.45
52 |
31.5
55.8
3.53
52 |
23.4
50.1
3.57
52 |
|
| |

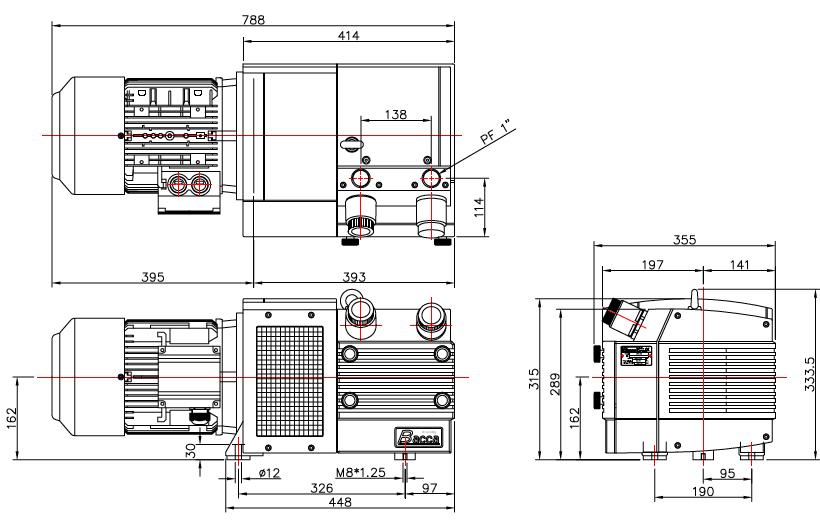

| Unit : mm (inch) |
| Type |
A |
B |
B1 |
D1 |
D2 |
E |
E1 |
F |
G |
G1 |
| DVT 3080 |
326 |
190 |
95 |
PF 1” |
PF 1” |
138 |
85 |
46 |
335 |
197 |
| Type |
G2 |
H |
H1 |
H2 |
H3 |
I |
K |
K1 |
K2 |
KM |
KL |
| DVT 3080 |
141 |
162 |
290 |
333.5 |
315 |
97 |
393 |
414 |
448 |
395 |
788 |
 |
|
|
| |
 |
|
