乾式吹吸複合泵 - DVT系列 |
|
| |
| 乾式吹吸複合泵 - DVT 3100 |
 |
| |
| Type |
Item |
Pressure
(bar) |
50Hz Vacuum (bar) |
60Hz Vacuum (bar) |
| 0 |
-0.4 |
-0.5 |
-0.6 |
0 |
-0.4 |
-0.5 |
-0.6 |
| DVT 3100 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.4 |
95.6
98
3.1
38 |
51
74.5
3.85
42 |
40.5
67
3.97
43 |
29.6
58.5
4.1
44 |
112.3
117.2
4.45
42 |
62
87.2
5
46 |
49.6
77.7
5.04
46 |
37.5
67.5
5.12
46 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.5 |
95.6
97.8
3.25
40 |
51
74.5
4
43 |
40.1
66.6
4.1
45 |
29.5
58.7
4.23
46 |
113.5
119
4.52
44 |
62.5
88.1
5.11
47 |
50
78
5.2
48 |
37.5
67.6
5.3
48 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.6 |
96
98.5
3.4
40 |
50.1
73.5
4.17
45 |
39.6
66.2
4.3
46 |
29.7
58.6
4.37
46 |
112.7
117.6
4.65
44 |
61.7
87.7
5.3
47 |
49
77.5
5.37
47 |
37.5
67.6
5.44
48 |
|
| |

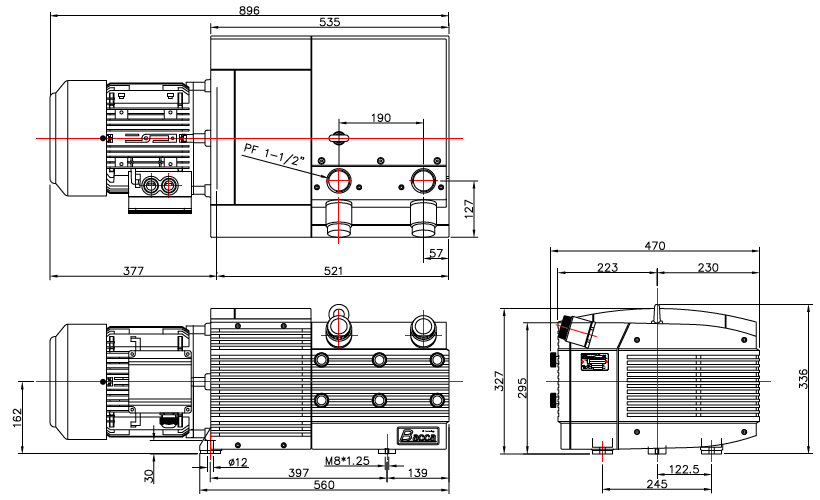

| Unit : mm (inch) |
| Type |
A |
B |
B1 |
D1 |
D2 |
E |
E1 |
F |
G |
G1 |
| DVT 3100 |
397 |
245 |
122.5 |
PF 1 1/2” |
PF 1 1/2” |
190 |
95 |
57 |
470 |
223 |
| Type |
G2 |
H |
H1 |
H2 |
H3 |
I |
K |
K1 |
K2 |
KM |
KL |
| DVT 3100 |
230 |
162 |
295 |
336 |
327 |
139 |
521 |
535 |
565 |
377 |
878 |
 |
|
|
| |
 |
|
