乾式吹吸複合泵 - DVT系列 |
|
| |
| 乾式吹吸複合泵 - DVT 3140 |
 |
| |
| Type |
Item |
Pressure
(bar) |
50Hz Vacuum (bar) |
60Hz Vacuum (bar) |
| 0 |
-0.4 |
-0.5 |
-0.6 |
0 |
-0.4 |
-0.5 |
-0.6 |
| DVT 3140 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.4 |
126.5
140
5
46 |
72
103
5.26
56 |
58
86
5.35
57 |
43
82
5.35
57 |
150
164
6.56
53 |
84
118.1
6.5
59 |
67
105
6.3
60 |
51
91.3
6.3
61 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.5 |
125
138
5.1
48 |
69
101
5.4
56 |
54.8
91
5.43
57 |
41
80
5.45
57 |
149
162.8
6.75
54 |
83
117
6.59
59 |
66.3
104
6.53
61 |
50
90.8
6.5
62 |
Suction of rate (m/h)
Blast of rate (m/h)
Power (kW)
Temperature compressed air (°C) |
+0.6 |
125.9
138
5.2
50 |
65
99
5.55
57 |
51
89
5.55
59 |
38
77.8
5.6
58 |
147.8162
6.83
55 |
83
116
6.75
60 |
65.9
102.7
6.8
60 |
50
89.8
6.85
62 |
|
| |

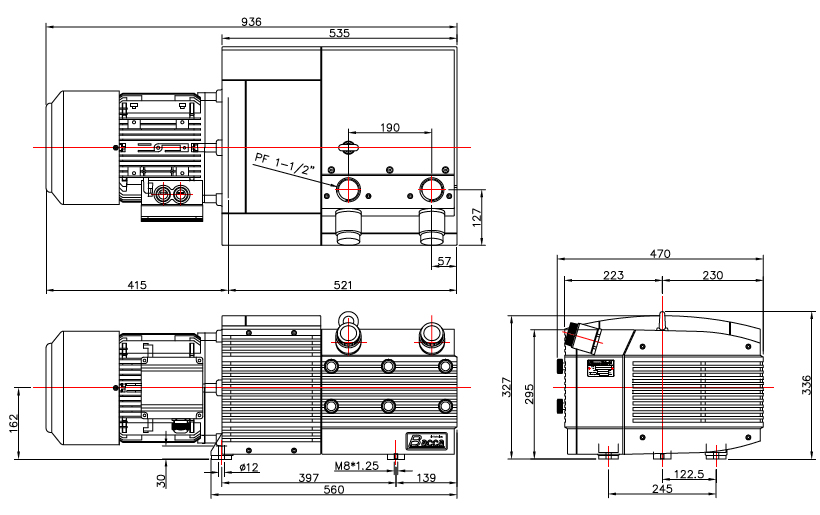

| Unit : mm (inch) |
| Type |
A |
B |
B1 |
D1 |
D2 |
E |
E1 |
F |
G |
G1 |
| DVT 3140 |
397 |
245 |
122.5 |
PF 1 1/2” |
PF 1 1/2” |
190 |
95 |
57 |
470 |
223 |
| Type |
G2 |
H |
H1 |
H2 |
H3 |
I |
K |
K1 |
K2 |
KM |
KL |
| DVT 3140 |
230 |
162 |
295 |
336 |
327 |
139 |
521 |
535 |
565 |
417 |
918 |
 |
|
|
| |
 |
|
