Rotary vane vacuum pump & compressor (DVT series)

Vacuum Pump & Compressor - DVT 3080

Type Item Pressure
(bar)		 50Hz  Vacuum (bar) 60Hz  Vacuum (bar)
0 -0.4 -0.5 -0.6 0 -0.4 -0.5 -0.6
DVT 3080 Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C)		  +0.4 64
65.9
2.11
41		 32.4
51.8
2.56
46		 25
47.3
2.63
45.8		 17.9
43.1
2.7
48		 77.5
82.5
2.91
45		 40.5
62.9
3.3
49		 31.7
56.7
3.33
50		 23.6
50.8
3.39
50
Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C) 		 +0.5 63.8
65
2.15
41		 32.1
51.2
2.65
48		 25
47
2.72
48		 18.1
43
2.82
49		 76.2
81.2
2.93
45		 40.5
62.8
3.36
50		 31.8
56.6
3.42
52		 23.3
50.3
3.47
51
Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C) 		 +0.6 62.8
64.5
2.25
43		 32
51
2.73
46		 24.6
46.6
2.8
49		 17.5
42.3
2.9
48		 75.9
80.6
3
46		 40.5
62.5
3.45
52		 31.5
55.8
3.53
52		 23.4
50.1
3.57
52

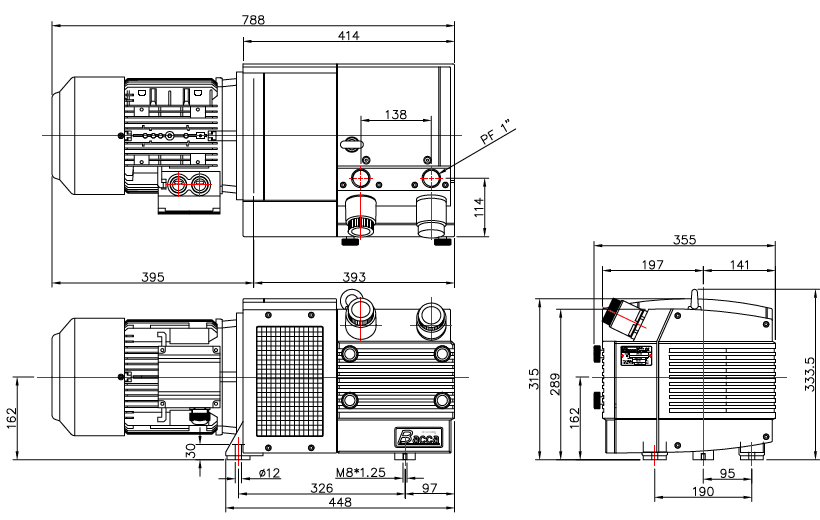

Unit : mm (inch)
Type A B B1 D1 D2 E E1 F G G1
DVT 3080 326 190 95 PF 1” PF 1” 138 85 46 335 197
Type G2 H H1 H2 H3 I K K1 K2 KM KL
DVT 3080 141 162 290 333.5 315 97 393 414 448 395 788
