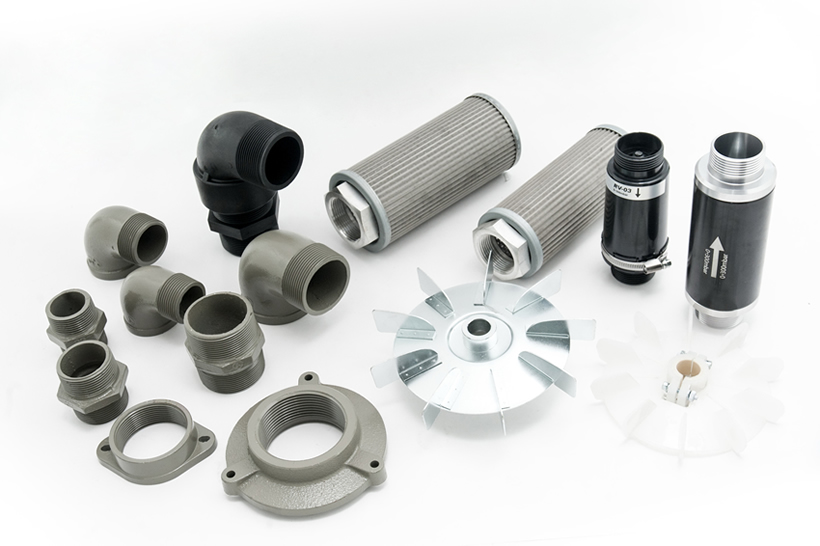

  Accessories
    Side channel blower
　 - relief valve (RVA)
　 - relief valve (RV)
　 - inlet/outlet flange
　 - elbow and bend
　 - inlet filter
　 - tee pipe
　 - silencer

  Roatry vane pump


Accessories

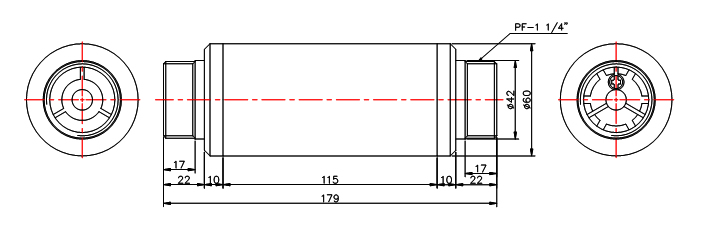

Relief Valve ( RVA)

Type Number Thread Range
RV-A03 PF-1 1/4 “ 0 ~ 300mbar
RV-A36 PF-1 1/4 “ 300 ~ 600mbar




- Relief Valve

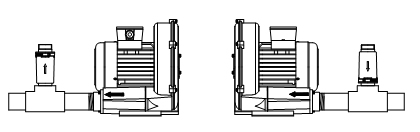

Over high pressure using shall be avoid in closed piping loop for side channel compressor/vacuum pump, otherwise deformation and break may occur to side channel compressor/vacuum pump due to temperature raise or over load, adjustable pressure & vacuum relief valve shall be installed to protect motor.



Application :
- Used in side channel compressor/vacuum pump and suitable both pressure/vacuum use.
- Static pressure setting easily adjustable.
- Connect thread suitable for PT, PF and NPT-1 1/4".
- Durable operation temperature : -20 ~+140oC
- Keep away from grease or volatile oil/gas.
