Rotary vane vacuum pump & compressor (DVT series)

Vacuum Pump & Compressor - DVT 3100

Type Item Pressure
(bar)		 50Hz  Vacuum (bar) 60Hz  Vacuum (bar)
0 -0.4 -0.5 -0.6 0 -0.4 -0.5 -0.6
DVT 3100 Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C)		 +0.4 95.6
98
3.1
38		 51
74.5
3.85
42		 40.5
67
3.97
43		 29.6
58.5
4.1
44		 112.3
117.2
4.45
42		 62
87.2
5
46		 49.6
77.7
5.04
46		 37.5
67.5
5.12
46
Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C)		 +0.5 95.6
97.8
3.25
40		 51
74.5
4
43		 40.1
66.6
4.1
45		 29.5
58.7
4.23
46		 113.5
119
4.52
44		 62.5
88.1
5.11
47		 50
78
5.2
48		 37.5
67.6
5.3
48
Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C)		 +0.6 96
98.5
3.4
40		 50.1
73.5
4.17
45		 39.6
66.2
4.3
46		 29.7
58.6
4.37
46		 112.7
117.6
4.65
44		 61.7
87.7
5.3
47		 49
77.5
5.37
47		 37.5
67.6
5.44
48

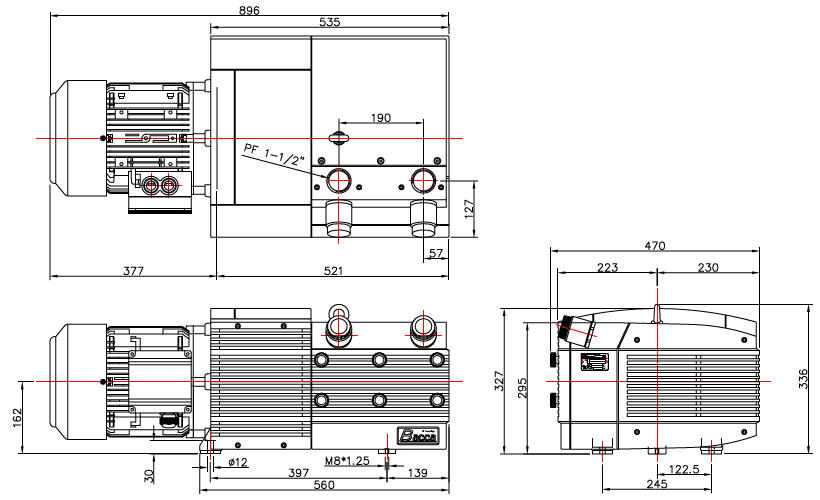

Unit : mm (inch)
Type A B B1 D1 D2 E E1 F G G1
DVT 3100 397 245 122.5 PF 1 1/2” PF 1 1/2” 190 95 57 470 223
Type G2 H H1 H2 H3 I K K1 K2 KM KL
DVT 3100 230 162 295 336 327 139 521 535 565 377 878
