Rotary vane vacuum pump & compressor (DVT series)

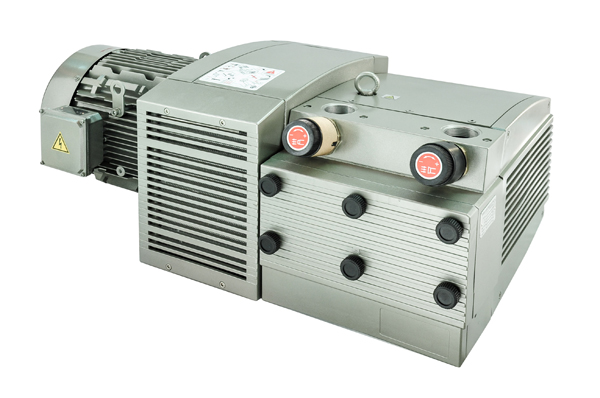

Vacuum Pump & Compressor - DVT 3140

Type Item Pressure
(bar)		 50Hz  Vacuum (bar) 60Hz  Vacuum (bar)
0 -0.4 -0.5 -0.6 0 -0.4 -0.5 -0.6
DVT 3140 Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C)		 +0.4 126.5
140
5
46		 72
103
5.26
56		 58
86
5.35
57		 43
82
5.35
57		 150
164
6.56
53		 84
118.1
6.5
59		 67
105
6.3
60		 51
91.3
6.3
61
Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C)		 +0.5 125
138
5.1
48		 69
101
5.4
56		 54.8
91
5.43
57		 41
80
5.45
57		 149
162.8
6.75
54		 83
117
6.59
59		 66.3
104
6.53
61		 50
90.8
6.5
62
Suction of rate          (m/h)
Blast of rate            (m/h)
Power                  (kW)
Temperature compressed air (°C)		 +0.6 125.9
138
5.2
50		 65
99
5.55
57		 51
89
5.55
59		 38
77.8
5.6
58		 147.8162
6.83
55		 83
116
6.75
60		 65.9
102.7
6.8
60		 50
89.8
6.85
62

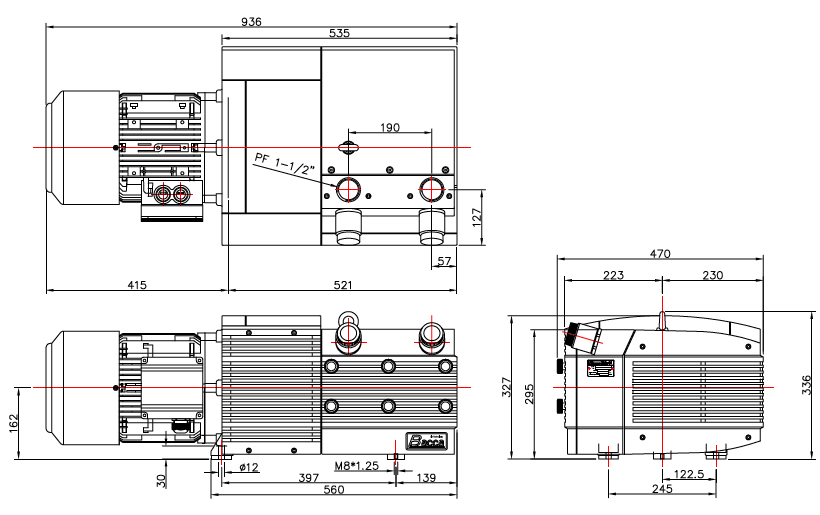

Unit : mm (inch)
Type A B B1 D1 D2 E E1 F G G1
DVT 3140 397 245 122.5 PF 1 1/2” PF 1 1/2” 190 95 57 470 223
Type G2 H H1 H2 H3 I K K1 K2 KM KL
DVT 3140 230 162 295 336 327 139 521 535 565 417 918
