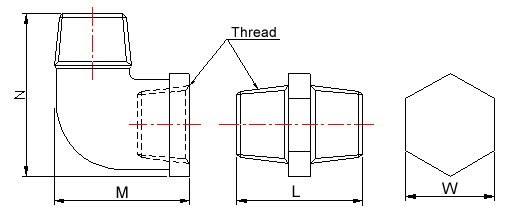

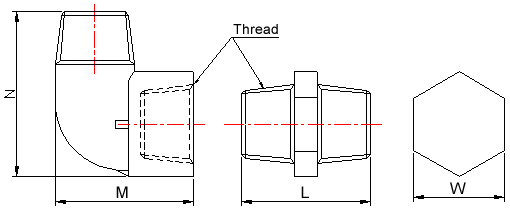

Home > Products > Accessories     Vacuum Pump (VRT)   Compressor (DRT)   Combination Pump (DVT)   Side Channel Blower (RT)   Turbo Blower (TB)   Accessories     side channel blower 　 - relief valve (RVA) 　 - relief valve (RV) 　 - inlet/outlet flange 　 - elbow and bendr 　 - inlet filter 　 - tee pipe 　 - silencer   Roatry vane pump     Accessories       Elbow and Bend for Filter   Dimensions   Type No. Thread inch L mm M mm N mm W mm Weight kgs Material BC-10 PT-1” 52 52 73 38 0.36 Cast Iron BC-12 PT-1 1/4” 56 65 90 47 0.57 Cast Iron BC-15 PT-1 1/2” 60 73 97 54 0.87 Cast Iron BC-20 PT-2” 67 85 120 65 1.30 Cast Iron BP-20 PT-2” 75 94 110 67 0.28 Plastic BC-25 PT-2 1/2” 76 105 137 82 1.86 Cast Iron BC-40 PT-4” 96 165 233 121 5.40 Cast Iron   BC Type     BP Type
