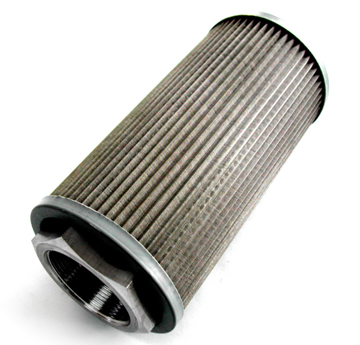

Inlet Filter

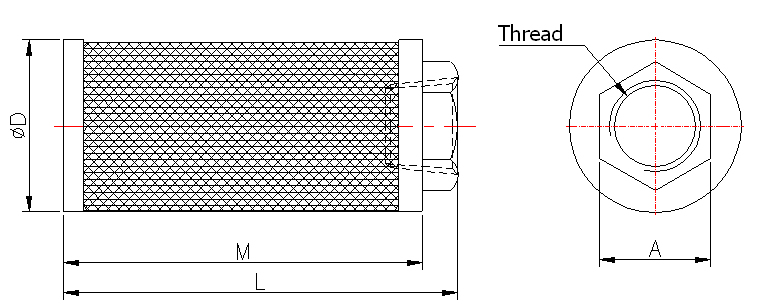

Dimensions

Type No. Thread
PT
A
mm
D
mm
L
mm
M
mm
Filtration
mesh
Flow
l/min
Weight
kgs
MF-08 1” 42 58 170 155 100 110 0.20
MF-10 1 1/4” 54 71 186 170 100 210 0.35
MF-12 1 1/2” 65 85 196 182 100 285 0.49
MF-16 2” 75 103 215 202 100 395 0.65
MF-20 2 1/2” 97 148 274 252 100 750 1.20
MF-32 4” 142 208 380 357 100 1000 2.45
