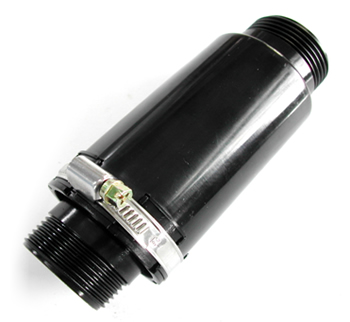

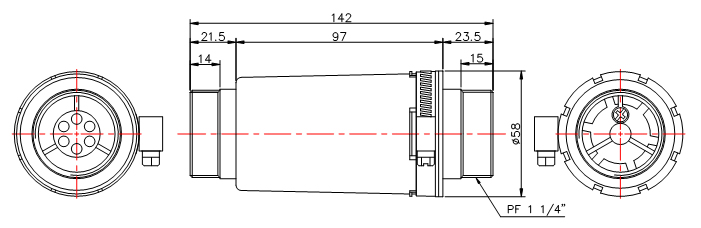

Relief Valve (RV)

Type Number Thread Range
RV-03 PF-1 1/4 “ 0 ~ 300mbar
RV-36 PF-1 1/4 “ 300 ~ 600mbar




-Relief Valve
Over high pressure using shall be avoid in closed piping loop for side channel compressor/vacuum pump, otherwise deformation and break may occur to side channel compressor/vacuum pump due to temperature raise or over load, adjustable pressure & vacuum relief valve shall be installed to protect motor.




Application :
- Used in side channel compressor/vauum pump and suitable both pressure/vacuum use.
- Static pressure setting easily adjustable.
- Connect thread suitable for PT, PF and NPT-1 1/4”.
- Durable operation temperature : -10 ~+120oC
- Keep away from grease or volatile oil/gas.
